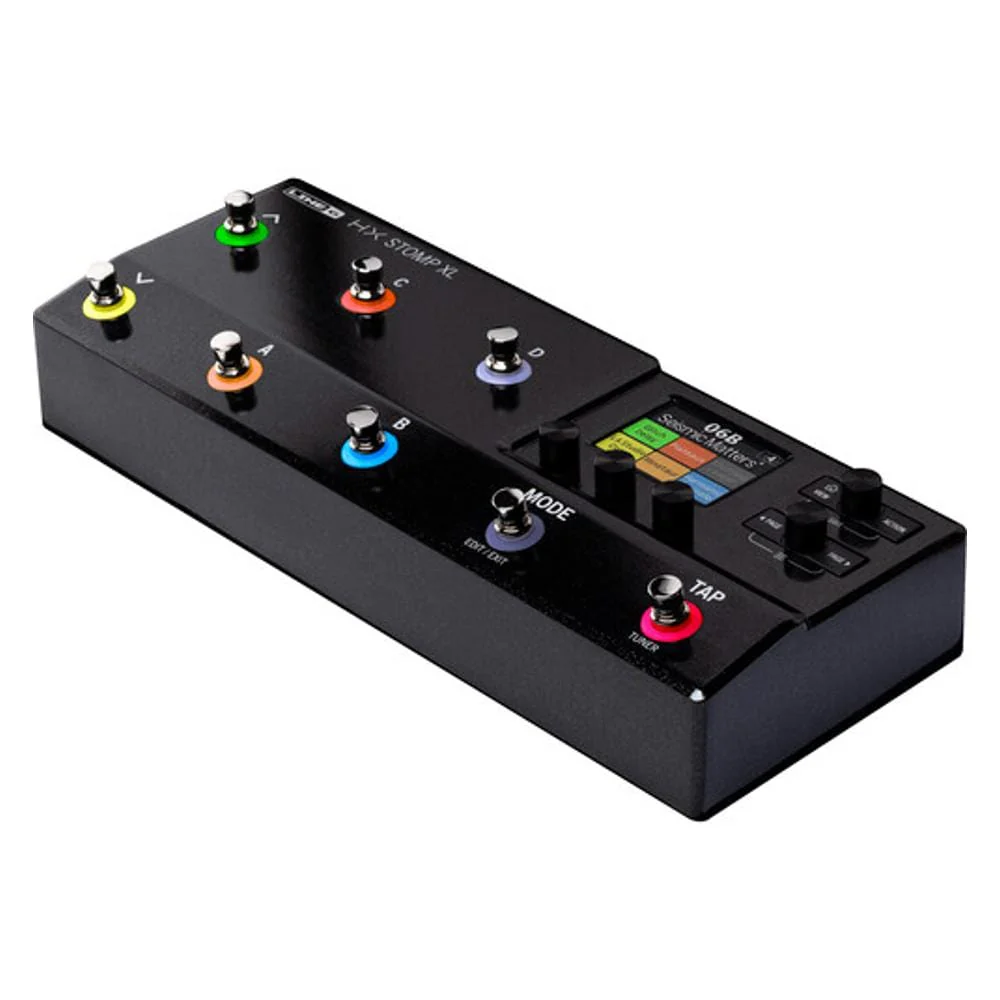

Line 6 HX Stomp XL Amp And Multi Effects Processor

Line 6 HX Stomp XL Amp And Multi Effects Processor Overview:

HX Stomp, Expanded
The HX Stomp XL amp and effects processor delivers HX modeling in a performance-ready pedal with eight capacitive-touch footswitches. The same SHARC DSP chip found in Helix enables it to run up to eight processing blocks simultaneously, and the footswitches let you access and control those blocks in powerful ways.

AUTHENTIC TONE
The SHARC audio engine in HX products accurately recreate the sonic characteristics and dynamic playing response of classic and modern amplifiers and effects.

HX CABS/IMPULSE RESPONSES
Helix cabinet models provide low-end reproduction and overall definition equivalent to a 2048-point impulse response (IR), and third-party impulse responses may also be loaded. A choice of 16 microphone models with adjustable distances provides additional flexibility.

COMPONENT MODELING
Each stage of an amp’s circuitry is measured and the results matched to the original during the modeling process, ensuring realistic sound and an authentic playing experience.

BEHAVIORAL MODELING
HX Modeling technology captures the unique behavior of analog effects devices by measuring their individual components, resulting in authentic recreations of even notoriously difficult-to-model effects such as germanium fuzz and “bucket-brigade” analog delay pedals.

ROUTING
HX processors easily integrate into pedalboard and studio rigs thanks to their flexible routing capabilities. Internal routing includes parallel stereo signal paths, while inputs and outputs include stereo-linkable effects loops.

COMMAND CENTER
HX processors can serve as command centers for any rig. MIDI messages can be sent manually via footswitches (or an optional expression pedal), and up to six commands can be sent automatically at preset or snapshot recall. Even QWERTY hotkey commands can be sent via USB.

ANALOG BYPASS
Switchable analog bypass routes signals at the input(s) directly to the output(s) without undergoing A/D/A conversion.

HX EDIT
HX Edit features the same intuitive user interface as HX processors. Create complex signal chains with ease, adjust settings and parameters using dedicated sliders, customize footswitch labels, and more.

Specifications

• Amp Models: 86
• Amp Models: 226
• Presets: 128 (32 banks x 4 presets)
• Simultaneous Processing Blocks: Up to 8 (DSP permitting)
• Signal Flow Options: Up to 2 stereo, serial or parallel
• Snapshots: 4 per preset
• Impulse Responses (IRs): 128x 1024 or 2048-point
• Global EQ Bands: 3 fully parametric + variable low & high cut
• Main Display (in/cm): 2.4/6 (Color)
• Footswitches: 8 capacitive touch w/RGB rings + 2x external
• Footswitch Modes: Stomp, Preset, Snapshot, Looper, Pedal Edit
• Footswitch Types: Footswitch Types
• Looper Types: 6 Switch, 1 Switch, Shuffling
• Looper Memory (Full Speed): 60 sec mono/30 sec stereo
• Looper Memory (1/2 Speed): 120 sec mono/60 sec stereo

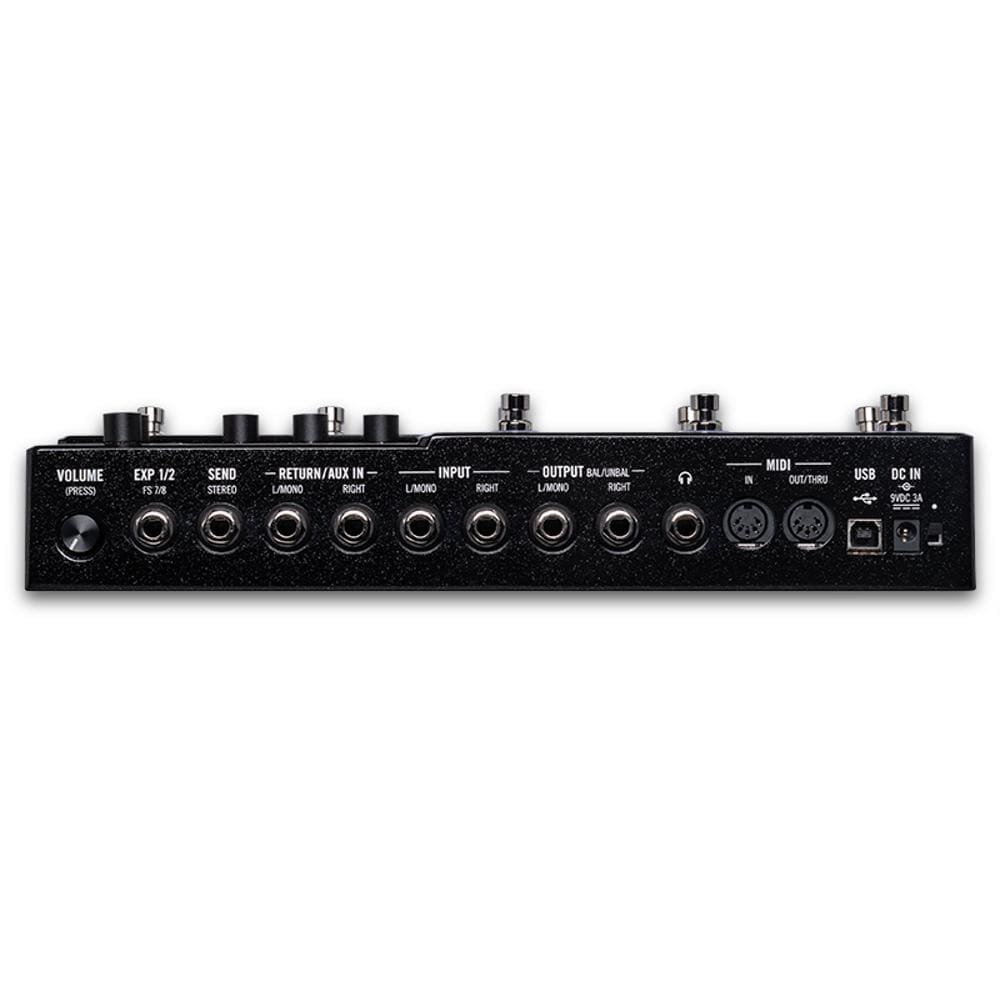

• 1/4” Inputs: Stereo L/R, Return L/R
• 1/4” Outputs: Main L/R, Stereo Send
• Effect Loop(s): 2x Send, 2x Return, stereo-linkable
• Headphones: 1/4" stereo
• MIDI: In, Out/Thru + USB
• USB Audio Interface: 8-in, 6-out w/ re-amping
• Master Remote Control: Command Center

Made in China
